Product Overview

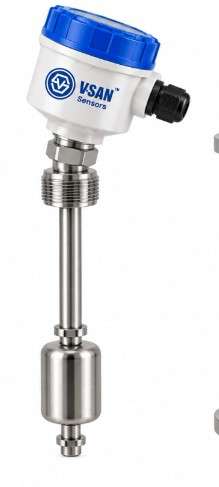

The VSAN Magnetic Float Level Switch is a highly reliable and rugged point level sensing instrument designed to detect predetermined liquid levels in tanks, vessels, reservoirs, and process equipment. It operates using the proven magnetic float principle, providing dependable high-level, low-level, or multi-point level detection for automatic process control, pump protection, overflow prevention, and alarm systems. Its simple design, maintenance-free operation, and long service life make it one of the most widely used level switches across various industrial sectors.

The transmitter consists of a buoyant float containing a permanent magnet that moves up and down with the liquid level along a guide stem. Inside the stem, hermetically sealed reed switches are positioned at predetermined switching points. As the float reaches the configured level, the magnetic field activates the reed switch, causing the electrical contacts to open or close and generate a switching signal.

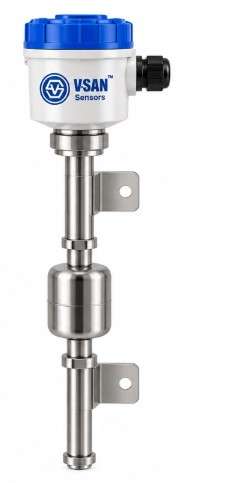

The VSAN Magnetic Float Level Switch is suitable for a wide range of liquids including water, wastewater, diesel, lubricating oil, hydraulic oil, edible oil, chemicals, solvents, acids, alkalis, coolants, fuel oils, process liquids, and other compatible fluids. It is available in Top Mounted, Side Mounted, Vertical, Horizontal, External Chamber Mounted, and Multi-Point Level Switch configurations to suit different installation requirements.

Manufactured using premium-quality materials such as SS304, SS316, SS316L Stainless Steel, PVC, PP, PVDF, PTFE, and engineering plastics, the switch offers excellent resistance to corrosion, pressure, temperature, and harsh industrial environments. Depending on the application, different float materials and guide stem designs are available to ensure optimum performance and long operational life.

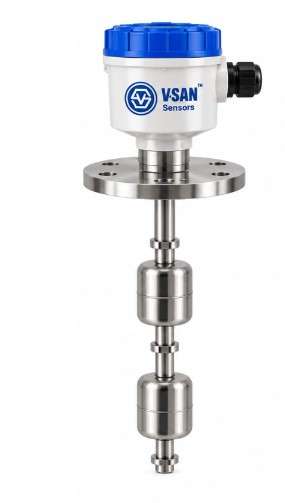

The VSAN Magnetic Float Level Switch is available with SPST, SPDT, NO (Normally Open), NC (Normally Closed), and Changeover Contacts, making it compatible with PLC, DCS, SCADA Systems, Relay Panels, Pump Control Panels, Alarm Systems, and Industrial Automation Equipment. Multiple switching points can also be incorporated within a single unit to monitor different liquid levels simultaneously.

Designed for continuous industrial operation, the switch features a rugged IP65/IP67/IP68-rated enclosure (model dependent), ensuring reliable performance in dusty, humid, and outdoor environments. Optional Explosion-Proof (Ex-proof) versions are available for hazardous locations where flammable gases or vapors are present.

The VSAN Magnetic Float Level Switch is widely used in Oil & Gas Industries, Chemical Processing, Petrochemical Plants, Water & Wastewater Treatment, Power Plants, Pharmaceutical Industries, Food & Beverage Processing, Marine Applications, Steel Plants, Cement Industries, HVAC Systems, OEM Equipment, Storage Tank Farms, Boiler Systems, and Industrial Automation, where dependable point level detection is critical.

With its robust construction, simple operating principle, high switching reliability, and maintenance-free performance, the VSAN Magnetic Float Level Switch provides an economical and dependable solution for industrial liquid level control and protection.
