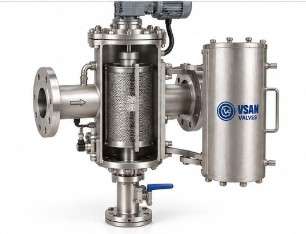

The VSAN Automatic Self-Cleaning Strainer is an advanced filtration system designed for continuous removal of suspended solids and debris from liquid process lines without interrupting system operation. Unlike conventional manual strainers, the Automatic Strainer continuously filters process fluids and automatically cleans the filter element whenever contamination reaches a predetermined level. This eliminates the need for frequent manual cleaning, reduces maintenance costs, and ensures uninterrupted process performance.
Engineered for demanding industrial applications, the VSAN Automatic Self-Cleaning Strainer effectively removes sand, rust, scale, algae, welding slag, fibers, and other suspended particles from water and process liquids. The integrated automatic cleaning mechanism, controlled by differential pressure or timer-based operation, continuously removes accumulated debris from the filter screen while maintaining full process flow.
Manufactured using premium-grade Carbon Steel, Stainless Steel (SS304, SS316, SS316L), Duplex Stainless Steel, and other corrosion-resistant materials, the VSAN Automatic Strainer offers exceptional durability and reliable performance under harsh operating conditions. The robust construction, precision filter screen, and automated cleaning system provide high filtration efficiency with minimal pressure loss.
The VSAN Automatic Self-Cleaning Strainer is available with flanged end connections in accordance with ANSI, ASME, DIN, BS, and IS standards. It is offered in various filtration ratings, pressure classes, and flow capacities to meet the requirements of diverse industrial applications.
Designed for fully automatic operation, reduced maintenance, and maximum equipment protection, the VSAN Automatic Self-Cleaning Strainer is widely used in Water Treatment Plants, Cooling Water Systems, Power Plants, Chemical Industries, Petrochemical Plants, Food & Beverage Processing, Steel Plants, Paper & Pulp Industries, Irrigation Systems, HVAC Systems, Marine Applications, and other continuous process industries.
The VSAN Automatic Self-Cleaning Strainer operates on the principle of continuous mechanical filtration with an automatic cleaning mechanism. During normal operation, the process liquid flows through the stainless steel filter screen, where suspended solids and debris are retained while clean fluid passes through the outlet.
As contaminants accumulate on the screen, the differential pressure across the filter gradually increases. Once the preset differential pressure or programmed cleaning interval is reached, the automatic cleaning system is activated. A rotating cleaning mechanism or suction scanner removes the accumulated debris from the screen surface while a drain valve simultaneously discharges the collected contaminants from the strainer body.
The cleaning cycle is completed without interrupting the process flow, ensuring continuous filtration and reliable protection of downstream equipment. After cleaning, the strainer automatically returns to normal filtration mode, providing uninterrupted operation with minimal maintenance.
| S.No | User Manual | Download |
|---|---|---|
| 1 | User Manual | Download |
| S.No | Document Name | Download |
|---|---|---|
| No Downloads Available. | ||
